Tank-Eye Software platform Interface: Browser based access to gauge data and management of configuration settings.

OKet® PLS Magnetostrictive Probes are designed for underground storage tanks, aboveground storage tanks, LPG storage tanks, with stainless-steel construction, easy installation and trouble-free performance, it can help the owners to management wet stock accurately and automatically.

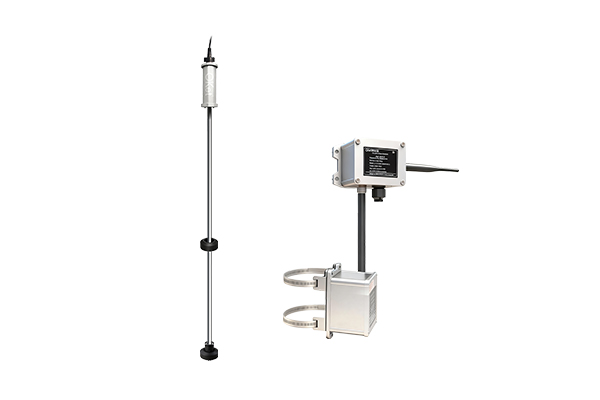

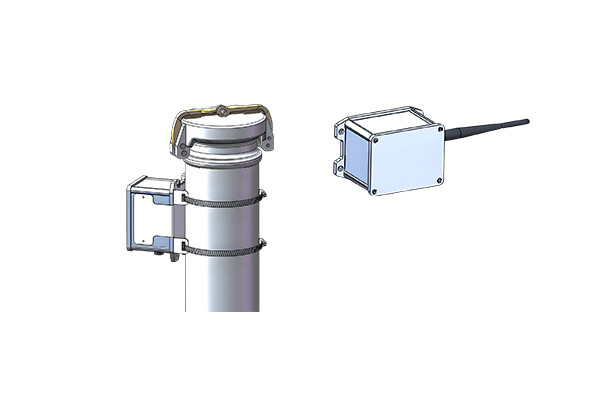

To address the challenge of not being able to install wiring at gas stations, OKet has developed a Wireless Automatic Tank Gauging (ATG) solution. This wireless technology is highly reliable and provides customers with seamless monitoring and management capabilities, offering them a lot of convenience.

PLS-RWT-X Power Unit

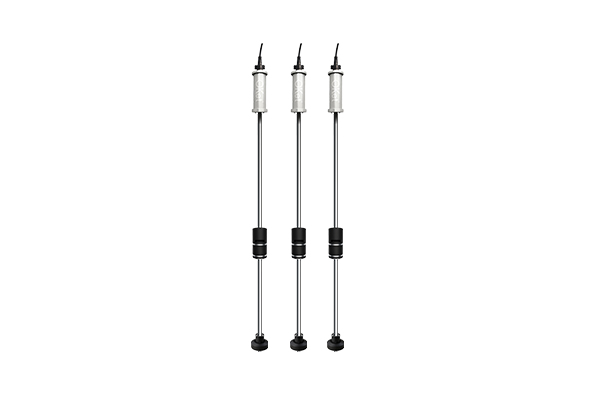

PLS-5BX Density Probe

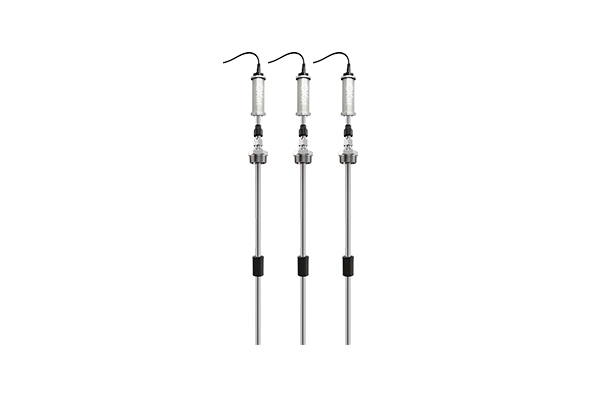

The PLS-5BX with special kit LPG to accurately measure inventory levels using an automatic tank gauge.The adapter kit includes stainless-steel jacket tube for probe shaft and float kits suitable for pressure of LPG.The protective tube design makes maintenance easily, Just pull out the probe and keep the protective tube.

The ATG console can be connected to an explosion-proofalarm bell, enhancing the alarm system with sound and light alerts to remind staff of critical alerts or abnormal conditions.

FRP double-wall tanks are usually filled with monitoring fluid in the interstice. Normally, the monitoring fluid level should keep in the middle of the reservoir which is on the top of the tank. OKet® provides HLS-1D dual-point hydrostatic sensor which can accurately detect fluid-level changes in reservoir in high or low level change. If the brine solution seeps into the tank, lowering the level in the reservoir, the sensor triggers a low-level alarm. If an outer wall leak occurs and groundwater seeps into the tank, a high alarm is activated.

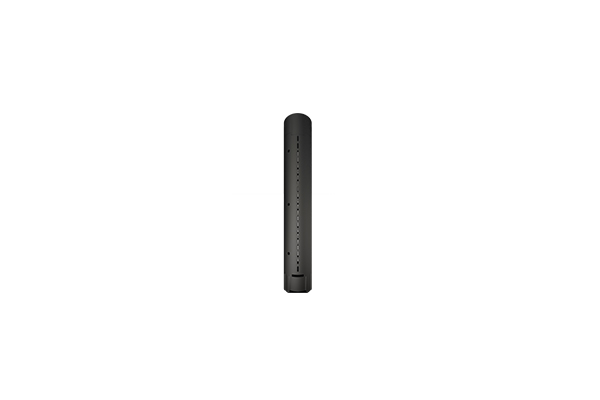

For FRP-Steel double-wall tanks, we install a SFLS-2DA/2C double-wall tank leak detection sensor into the lowest point of the interstitial space which is usually on the bottom of the tank. Any leak of the tank occurs, it will trigger an alarm. Usually, the leak of outer wall will lead water from the soil flow into the bottom of the interstitial space, and the leak of inner wall will lead fuel from the inside of the tank flow into the bottom of the interstitial space, then the liquid will be detected by the SFLS-2DA/2C double-wall tank leak detection sensor and trigger an alarm.

FSLS-1 is installed in the riser pipe of tank containment sump or a groundwater monitoring well to monitor if there is any liquid in the tank containment sump or fuel on the underground water in the well in real time. Three alarm points are set to detect the liquid is fuel or water. Self-detection function can detect open circuit or short circuit.

It is suitable for the vacuum negative pressure leakage measurement method of lining method. By detecting the pressure of the middle layer of the double layer tank, the pressure state of the middle layer of the double layer tank of the lining method can be monitored in real time to judge the leakage of the oil tank.

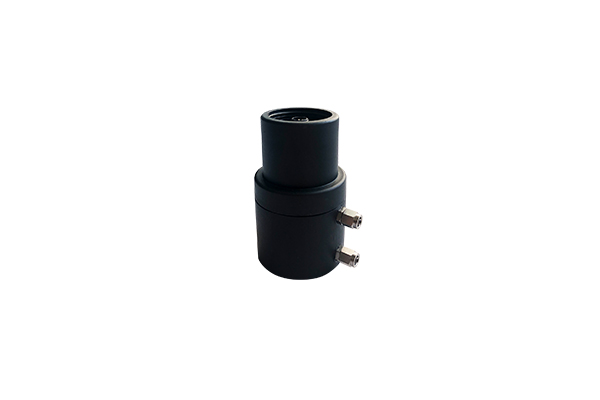

The double-wall pipeline is sloped during the installation to ensure its contents will drain back into the storage tank . So we could install a DLLS-2DA double-wall pipeline leak sensor which connects the lowest point of the interstial space of the double-wall pipeline with a fuel collecting tube .
