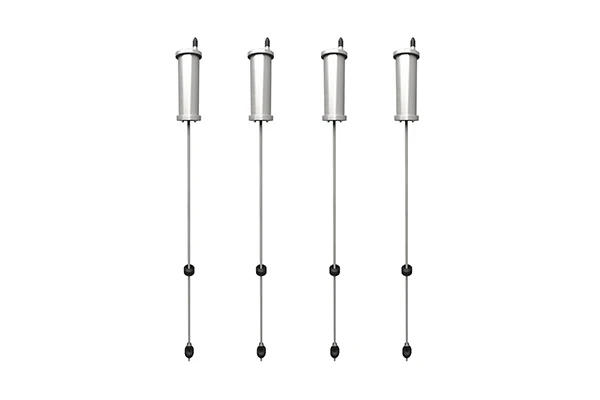

PLS-5BX Fuel Probe

Name: PLS-5BX Fuel Probe
SKU: 0

OKet® PLS Magnetostrictive Probes are designed for underground storage tanks, aboveground storage tanks, LPG storage tanks, with stainless-steel construction, easy installation and trouble-free performance, it can help the owners to management wet stock accurately and automatically.

Send Message

Features & Benefits:

Magnetostrictive technology with five-point temperature ensure the accurate measurement data
In-tank leak detection function(support 0.1GPH and 0.2GPH) and fuel density function, one probe for all applications
Stainless-steel guide tube and adjustable spacers for quick and easy installation
New 2" and 3" float kits, which enable lower product-level reading capabilities
ATEX approved

Specifications:

Specification	PLS-5BX Probe
Applicable Medium	Gasoline, Diesel, Kerosene, Ethanol gasoline, and other common petroleum liquids
Measured Variable	Product level, water level and temperature of 5 sensors and average temperature
Vessel Pressure	-0.015~0.2 MPa
Product Level Accuracy	±0.5 mm (Standards factory accuacy ±0.2 mm)
Water Level Accuracy	±0.5 mm (Standards factory accuacy ±0.2 mm)
Temperature Accuracy	±0.2 ℃
Resolution	0.001 mm
Repeatability	±0.1 mm
Response Time	＜1 second
Leakage Detection Function	0.1 GHP, 0.2 GHP or custom standards
Explosion-Proof Grade (Safety Level)	Ex ia IIB T4 Ga (Intrinsically safe)
Temperature	-40℃~70℃
Lowest Product Inactive Zone	With 3" float 100 mm
Lowest Water Inactive Zone	With 3" float 15 mm
Float	3" or 2"
Probe Length	0.6~4.0 m (Special customization for 4.0~6.0 m)
Method of Communication	RS-485 (Special customization for Hart)
Power Supply	DC +24~26 V
Probe Canister	IP68
Cable	4-core shielded cable
Console Compatibility	PD-350+ & PD-350P & SIoT-100 (Wired and wireless)
