The releases from underground storage tanks can contaminate soil, groundwater, surface water, or indoor air; releases can also result in fire and explosion hazards, as well as produce long-term health effects.
As a professional company in the field, OKet provides highly customizable automatic tank gauging system and leak detection solutions for fuel stations.
OKet offers a wide variety of leak detection sensors solutions to assist fuel station owners in monitoring their tanks, lines, sumps, and wells.
You can choose to integrate all sensors in ATG console PD-350+/PD-350P/MC-6 or you may have special sensor monitor alarmer LM-1.
Such as: PD-350+ ATG console could not only connect ATG probes, also integrate different type of leak sensors directly.

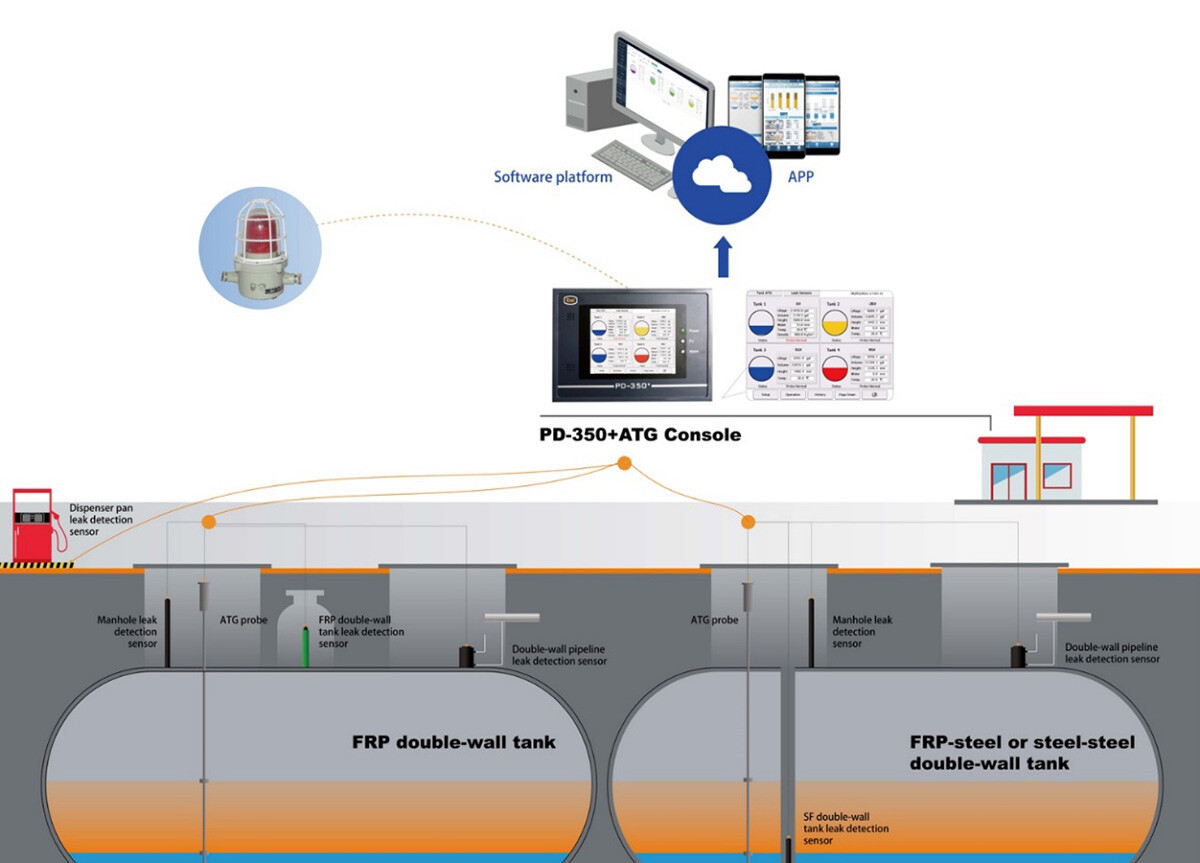

● Different type of leak sensors together with ATG probe could be integrated with J-box in the manhole of UST.
● Leak sensors and probes are installed in the same tank using one wire which is from tank field to the back office to the PD-350+ console. The console is monitoring the leak sensors in real time, any leak detected by leak sensors will trigger an alarm and generate a report.

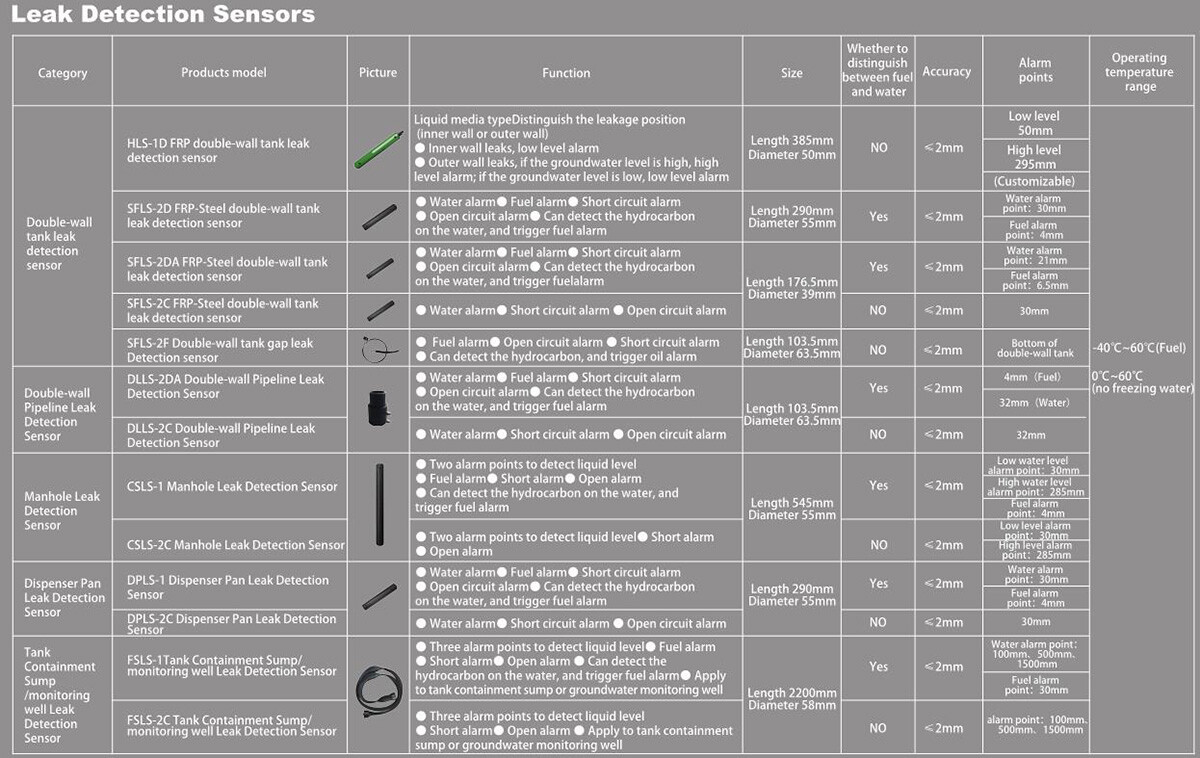

OKet providing various sensors to satisfy your different needs:
All leak sensors could be integrated into OKet ATG consoles with visual and audible alarms that are convenient and easy to use.
If you have any interest in OKet’s underground storage tanks monitoring system, Please contact us.
RELATED PRODUCTS
HLS-1DFRP double-wall tanks are usually filled with monitoring fluid in the interstice. Normally, the monitoring fluid level should keep in the middle of the reservoir which is on the top of the tank. OKet® provides HLS-1D dual-point hydrostatic sensor which can accurately detect fluid-level changes in reservoir in high or low level change. If the brine solution seeps into the tank, lowering the level in the reservoir, the sensor triggers a low-level alarm. If an outer wall leak occurs and groundwater seeps into the tank, a high alarm is activated.Learn More- FRP-steel Double-wall tank Leak Detection SensorFor FRP-Steel double-wall tanks, we install a SFLS-2DA/2C double-wall tank leak detection sensor into the lowest point of the interstitial space which is usually on the bottom of the tank. Any leak of the tank occurs, it will trigger an alarm. Usually, the leak of outer wall will lead water from the soil flow into the bottom of the interstitial space, and the leak of inner wall will lead fuel from the inside of the tank flow into the bottom of the interstitial space, then the liquid will be detected by the SFLS-2DA/2C double-wall tank leak detection sensor and trigger an alarm.Learn More
- FSLS-1/FSLS-2C Tank Containment Sump Leak Detect SensorFSLS-1 is installed in the riser pipe of tank containment sump or a groundwater monitoring well to monitor if there is any liquid in the tank containment sump or fuel on the underground water in the well in real time. Three alarm points are set to detect the liquid is fuel or water. Self-detection function can detect open circuit or short circuit.Learn More
- VTLS-1It is suitable for the vacuum negative pressure leakage measurement method of lining method. By detecting the pressure of the middle layer of the double layer tank, the pressure state of the middle layer of the double layer tank of the lining method can be monitored in real time to judge the leakage of the oil tank.Learn More
- DLLS-2DA/DLLS-2C Double-wall Pipeline Leak Detection SensorThe double-wall pipeline is sloped during the installation to ensure its contents will drain back into the storage tank . So we could install a DLLS-2DA double-wall pipeline leak sensor which connects the lowest point of the interstial space of the double-wall pipeline with a fuel collecting tube .Learn More
- CSLS-1/CSLS-2C Manhole Leak Detection SensorCSLS-1 manhole leak detection sensor is used to monitor whether liquid exits in the manhole. Two alarm points are set to monitor the liquid level and it can distinguish the liquid is water or fuel. Self-detection function can detect open circuit or short circuit.Learn More
- DPLS-1/DPLS-2C Dispenser Pan Leak Detection SensorDPLS-1 dispenser pan leak detection sensor is installed in the dispenser pan to monitor if there is any liquid exiting in real time. Any fuel/water presented in the bottom of dispenser pan will be tested and alarmed.Learn More
