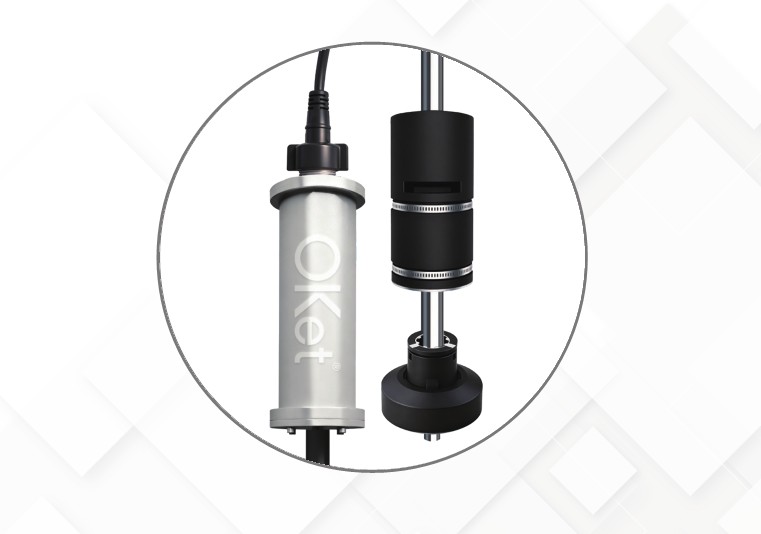

PLS-5BX Density Probe

Name: PLS-5BX Density Probe
SKU: 0

The PLS-5BX can be optionally equipped with adensity measurement float, providing accurate monitoring of fuel density and composition.

Send Message

The PLS-5BX can be optionally equipped with a density measurement float, providing accurate monitoring of fuel density and composition, which enables real-time detection of even small variations in fuel quality, helping operators to:

Verify fuel purity and blending accuracy.
Confirm product integrity between delivery and storage.
Support fuel quality management across large retail networks.

Specifications:

Gasoline Density Range	(690-800) kg/m³
Diesel Density Range	(790-900) kg/m³
Accuracy	+3 kg/m³(Optional ±1 kg/m³)
Outer Diameter	95 mm (4" riser required)
Lowest Product Inactive Zone	With density float 198 mm
Lowest Water Inactive Zone	With 3" foat 15 mm
