PLS-5BX LPG/DEF Probe

Name: PLS-5BX LPG/DEF Probe
SKU: 0

The PLS-5BX offers exceptional versatility by enabling precise monitoring of DEF and LPG within the same probe platform.

Send Message

The PLS-5BX offers exceptional versatility by enabling precise monitoring of DEF and LPG within the same probe platform. Purpose-built materials and specialized float kits ensure compatibility with corrosive DEF and high-pressure LPG tanks. This flexibility allows fuel retailers to standardize equipment, simplify maintenance,and improve wetstock visibility across diverse product types.

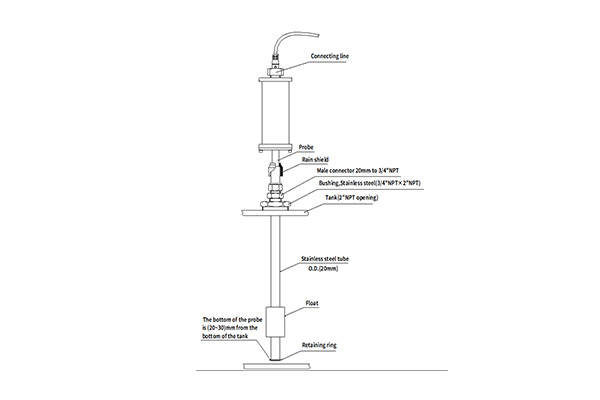

The PLS-5BX can be equipped with special DEF/LPG adapter kits to accurately measure inventory levels in liquefied petroleum gas tanks using the automatic tank gauge system. The kits include a stainless-steel protective jacket tube for the probe shaft and specialized float assemblies designed to with stand DEF/LPG tank pressures. The protective tube design simplifies maintenance: the probe can be easily removed while leaving the protective tube in place, ensuring convenient servicing without disturbing the tank installation.

Specifications:

Probe Description & Application	The PLS-5BX LPG/DEF probes are used for monitoring LPG/DEF product level and temperature in tanks
Titles of Medium	LPG, DEF (Adblue)
Measured Variable	Product level, and average temperature with 5 temperature sensors
Vessel Pressure	≤3 MPa
Product Level Accuracy	±0.5 mm
Temperature Accuracy	±0.2 °C
Resolution	0.001 mm
Repeatability	±0.1 mm
Response Time	<1 second
Leakage Detection Function	Yes
Ex-proof Grade (Safety level)	Ex ia IIB T4 Ga (Intrinsically safe)
Temperature	-40°C~70°C
Lowest Product Inactive Zone	83 mm
Float	2" (40 mm) (Special DEF/LPG float)
Probe Length	0.6~4.0 m
Method of Communication	RS-485
Power Supply	DC +24~26 V
Protection Rating	IP68
Cable	4-core shielded cable
Length	Customization
Console Compatibility	PD-350+ & PD-350P & SloT-100 (Wired and wireless)
