Integrated Cabinet-style Process Controller
The OKet integrated cabinet-style process controller is designed specifically for loading and delivery at oil depots and chemical plants. It integrates functions such as key management, static electricity elimination, ground bolt detection, and overflow prevention.

n   Product Introduction

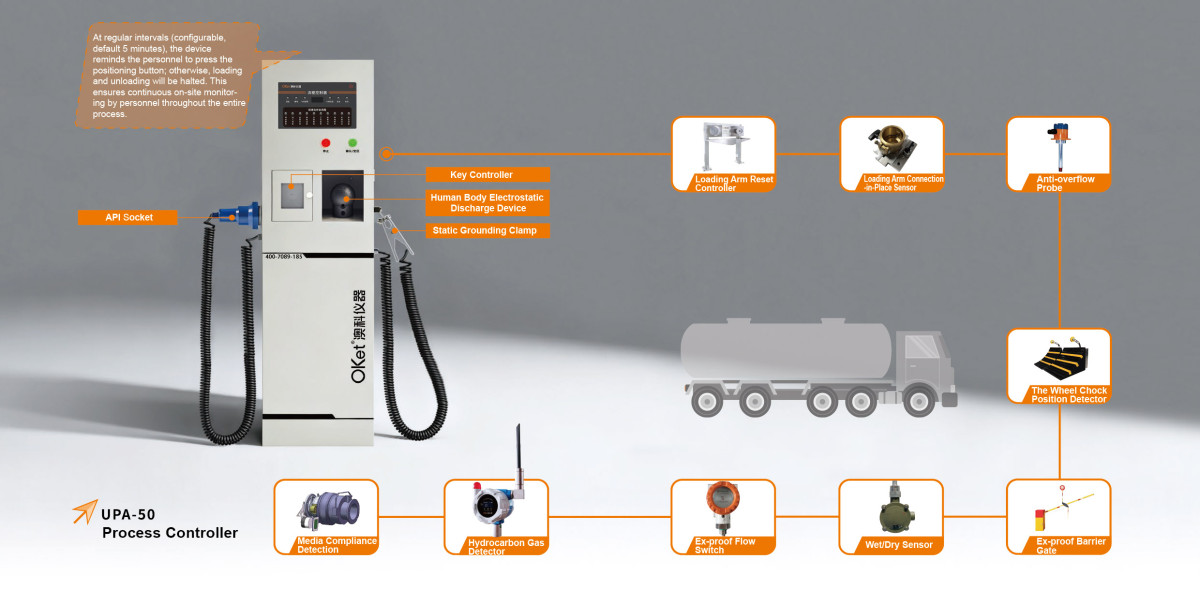

The OKet integrated cabinet-style process controller is designed specifically for loading and delivery at oil depots and chemical plants. It integrates functions such as key management, static electricity elimination, ground bolt detection, and overflow prevention. Additionally, it can be optionally equipped with devices such as crane homing, flammable gas detection, gas phase sensor monitoring, anti-blending oil controller, and wheel homing. Combined with features like voice prompt reminders, indicator light status display, and button control, it further standardizes and supervises the operational procedures of personnel during the oil loading and delivery process, enhancing the fundamental level of safety.

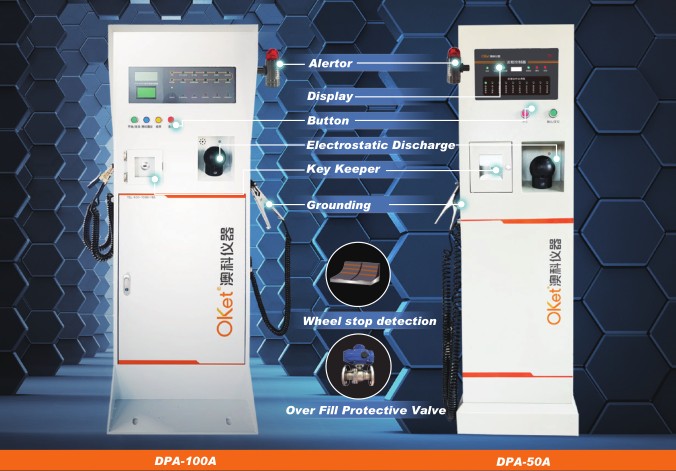

n Product Images


n  Product Features

1) Reminder for approaching personnel, prompting static electricity elimination;

2) Static grounding, reliably eliminating static electricity from the vehicle body;

3) Countdown function to ensure personnel presence;

4) Overflow monitoring to prevent overflow accidents;

5) Key management to prevent operation of vehicles without the engine off;

6) Intelligent interlock control for effective alarm prompts;

7) Integrated design for easy operation and space reduction;

8) Flexible configuration.

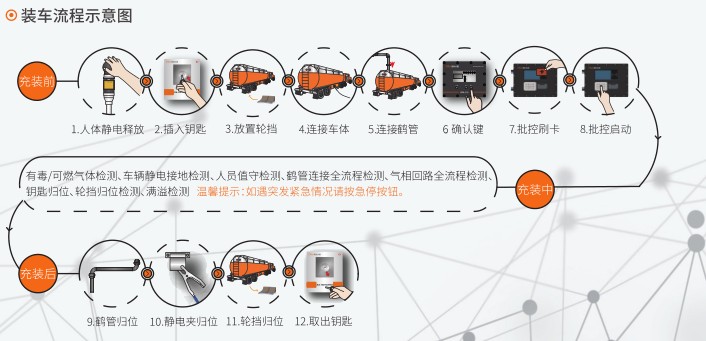

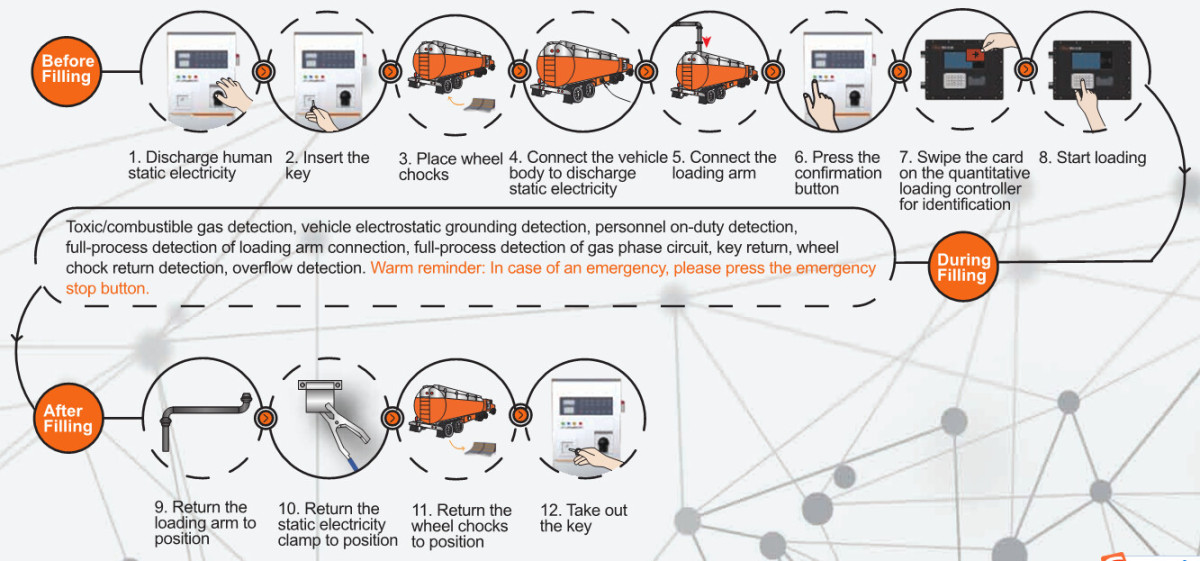

      n   Loading Process Diagram


n   充装前Before Loading

1.人体静电释放Human static electricity discharge

2.插入钥匙Insert key

3.放置轮挡Place wheel chock

4连接车体Connect vehicle body

5.连接鹤管Connect crane

6确认键Confirm button

7.批控刷卡Batch control card swiping

8.批控启动Batch control start

n   充装中During Loading

Toxic/flammable gas detection, vehicle static grounding detection, personnel presence detection, crane connection full-process detection, gas phase circuit full-process detection, key return, wheel chock homing detection, overflow detection.Friendly Reminder: In case of emergency, please press the emergency stop button.

n   充装后After Loading

9.鹤管归位Crane Homing

10.静电夹归位Static electricity clamp homing

11.轮挡归位Wheel chock homing

12.取出钥匙Remove key

   n    Datasheet

Operating VoltageAC220VOperating Current<150mA
Operating Temperature-40°C to 60°CResponse Time<2s
Output SignalRS485/SwitchingExplosion-proof TypeExplosion-proof
